How to Use Model Generator (Gii Tool - Yii Code Generator)

Model Generator, generates a model class for the specified database table. In the application of Gii Tool - Model Generator you need a database to connect. Follow the steps below:

1. Create a simple MySQL database. For example I use yiicode as database name and user as table. See the attributes as follows:

Field	Type	Lenght/Values	Exrta	Primary
id	int	-	auto_increment	Yes
name	varchar	60	-	-
address	varchar	200	-	-
website	varchar	100	-	-
email	varchar	50	-	-

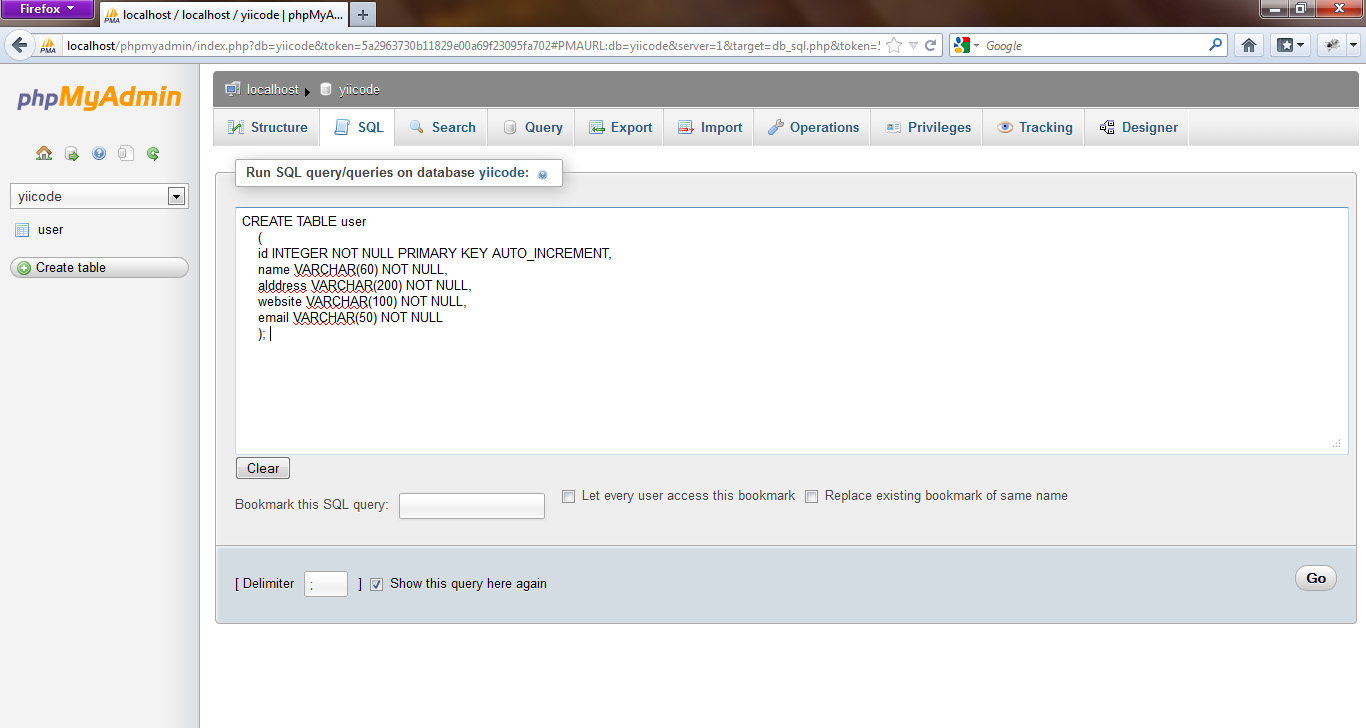

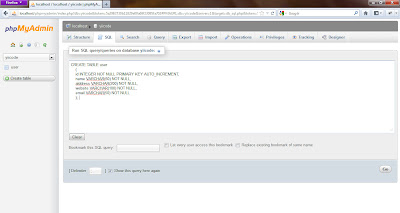

To make it, open http://localhost/xampp/, click on phpMyAdmin, click Databases, on the columns Create a new database typing demo, and click create. After that click on the SQL and create a user table by entering the following SQL command:

CREATE TABLE user
(
id INTEGER NOT NULL PRIMARY KEY AUTO_INCREMENT,
name VARCHAR(60) NOT NULL,
address VARCHAR(200) NOT NULL,
website VARCHAR(100) NOT NULL,
email VARCHAR(50) NOT NULL
);

2. After that you please login to Gii - http://localhost/webappname/index.php?r=gii/default/login.
Typing in the Table Name * is tbl_user and in the Model Class * is User

You can see PHP code by click Preview button and the models\User.php. This code will be automatically stored in the xampp \ htdocs \ yourappname \ protected \ models \ User.php.
After it, click the Generate button

If successful will appear in the following:

The code has been generated successfully.
Generating code using template “xampp\htdocs\yii\framework\gii\generators\model\templates\default”…
generated models\User.php
done!

That means you have successfully created a model to perform CRUD operations.

Configuration Gii Tool (Yii Code Generator)

Gii (automatic code generation) is a Web-based code generator tool of Yii to develop a web application development productivity. Gii is implemented as a module and should be used in the Yii application. To use Gii, you have to do some Gii configuration first. The following configuration steps Gii (producer of automatic code - Code Generator):

1. Have you open the protected / main.config.php
2. Find the following code


   // uncomment the following to enable the Gii tool
    /*
    'gii'=>array(
     'class'=>'system.gii.GiiModule',
     'password'=>'admin',
      // If removed, Gii defaults to localhost only. Edit carefully to taste.
     'ipFilters'=>array('127.0.0.1','::1'),
    ),
    */
   ),

3. Remove the tag comment / * and * /, so like this


   // enable Gii tool
    'gii'=>array(
     'class'=>'system.gii.GiiModule',
     'password'=>'Enter Your Password Here',
      // If removed, Gii defaults to localhost only. Edit carefully to taste.
     'ipFilters'=>array('127.0.0.1','::1'),
    ),
   ),

4. Change Your password in Enter Your Password Here, for example 123456


   // enable Gii tool
    'gii'=>array(
     'class'=>'system.gii.GiiModule',
     'password'=>'123456',
      // If removed, Gii defaults to localhost only. Edit carefully to taste.
     'ipFilters'=>array('127.0.0.1','::1'),
    ),
   ),

Now you have to login to Gii tool by open a web browser and type the http://localhost/yiicode/index.php?r=gii/default/login Changes yiicode with your application name.



Before login Gii (Yii Code Generator)



After login Gii (Yii Code Generator)

Nb: Gii is mainly provided as a development tool. Therefore, it should only be installed on a development machine. Because it can generate new PHP script files in the application, we should pay sufficient attention to its security measures (e.g. password, IP filters).
